Medium Pressure Chemical and Foam equipment

Complete with chemical pick up tube filter and air tube, two models available for medium or high pressure systems. Stainless steel couplings are included. Chemical tips are changeable to determine the desired dosage rate.

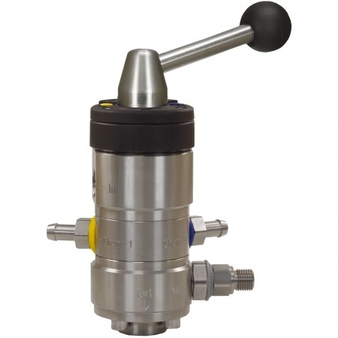

The injector is especially designed for low and medium pressure applications from a water inlet pressure of 5 bar and it generates an excellent foam when being provided with the required quantity of compressed air.

The injector is available in the nozzle size of 1.2 - 2.8 mm.

The dosing is adjusted by one of the 10 nozzle inserts which are included.

The connection for chemicals is equipped with an integrated check valve.

3/8" F : 1/2" F : 2 x Hose tail 9 mm : compressed air module (1/4" M).

The chemical dosing is adjusted by 2 x 10 exchangeable nozzle inserts (0.5 - 2mm).

Max. 350 bar / 100 °C
